Reference

Quality levels

Four tiers trade resolution, reflections, ripple layers and particle counts for speed. Switch at any time with setQualityLevel(); the water shaders recompile and the meshes rebuild on the next frame.

const water = await RiverSystem.create({ renderer, scene, camera, quality: 'medium' });
water.setQualityLevel('ultra');
water.qualityLevel;   // 'ultra'

#The tiers

Setting	`low`	`medium`	`high`	`ultra`
`rtScale`: world target resolution	0.7	0.85	1.0	1.0
`samples`: MSAA on the world target	–	–	–	4×
`ssrSteps`: screen-space reflection steps	off	off	20	36
`normalLayers`: ripple layers	2	3	3	3
`maxObstacles`	12	24	40	64
`ribbonStep`: metres between cross-sections	2.0	1.5	1.0	0.7
`crossSegments`: quads across a ribbon	8	12	16	22
`spray` / `mist` per waterfall	180 / 10	360 / 16	640 / 24	1100 / 36
`waterMap`: top-down map resolution	512²	1024²	1024²	2048²
`causticLayers` on patched materials	1	2	2	2

high is the default. The demo on high at 1280×720 runs at the display cap of 120 fps on an Apple M5 when nothing else is using the GPU.

#What you give up

rtScale below 1 renders your whole scene, not just the water, at a lower resolution before it is composited. It lowers the cost of everything you draw, and it softens the whole image.
Without SSR (low, medium) the water reflects only the sky and the tree-line band, not the banks and rocks.
Two ripple layers (low) drop the stationary standing-wave layer, so fast water looks smoother.
Fewer obstacles means the farthest registered rocks lose their rings and wakes first.
Coarser ribbons only matter in tight bends and on steep, descending paths.

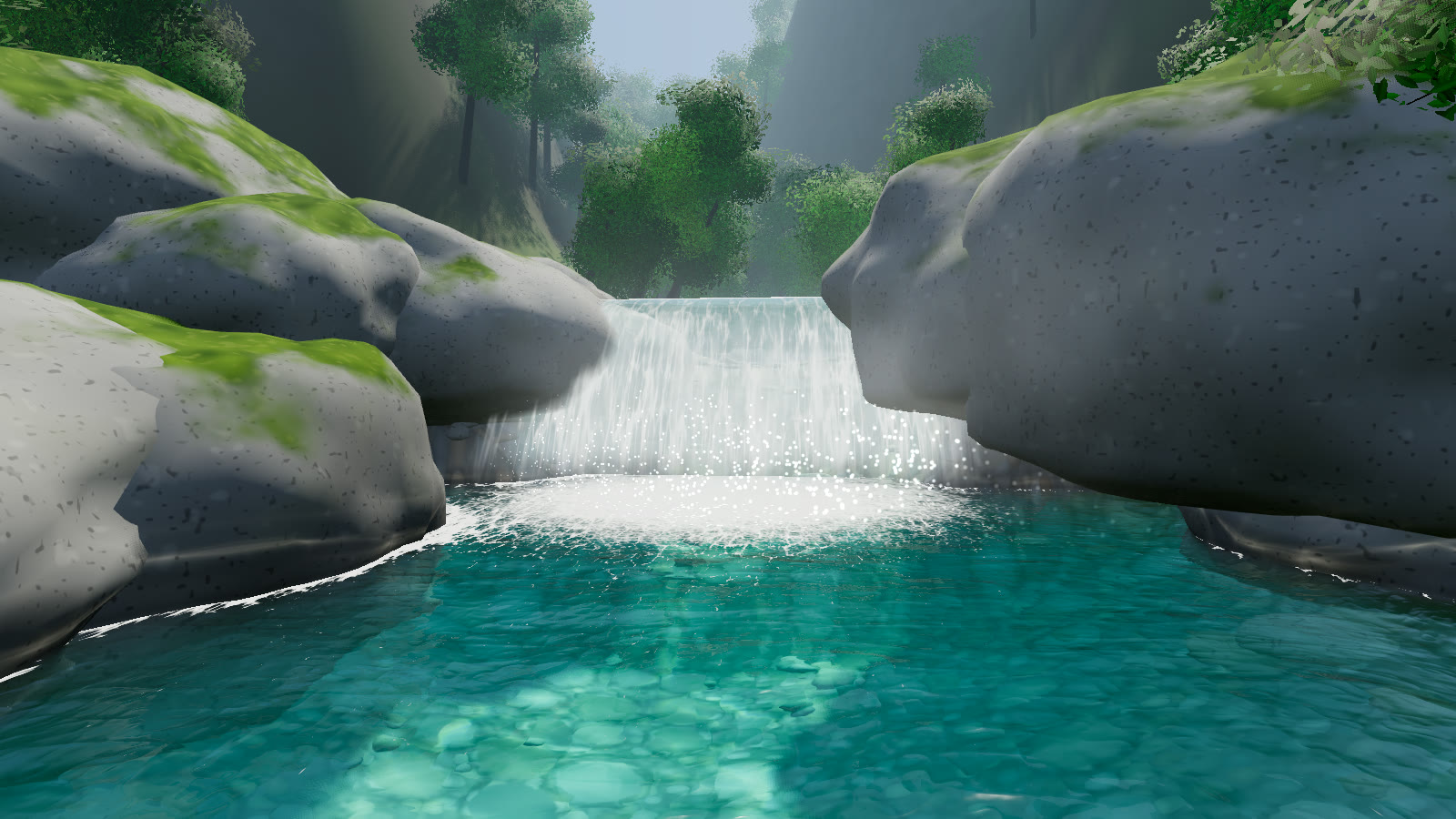

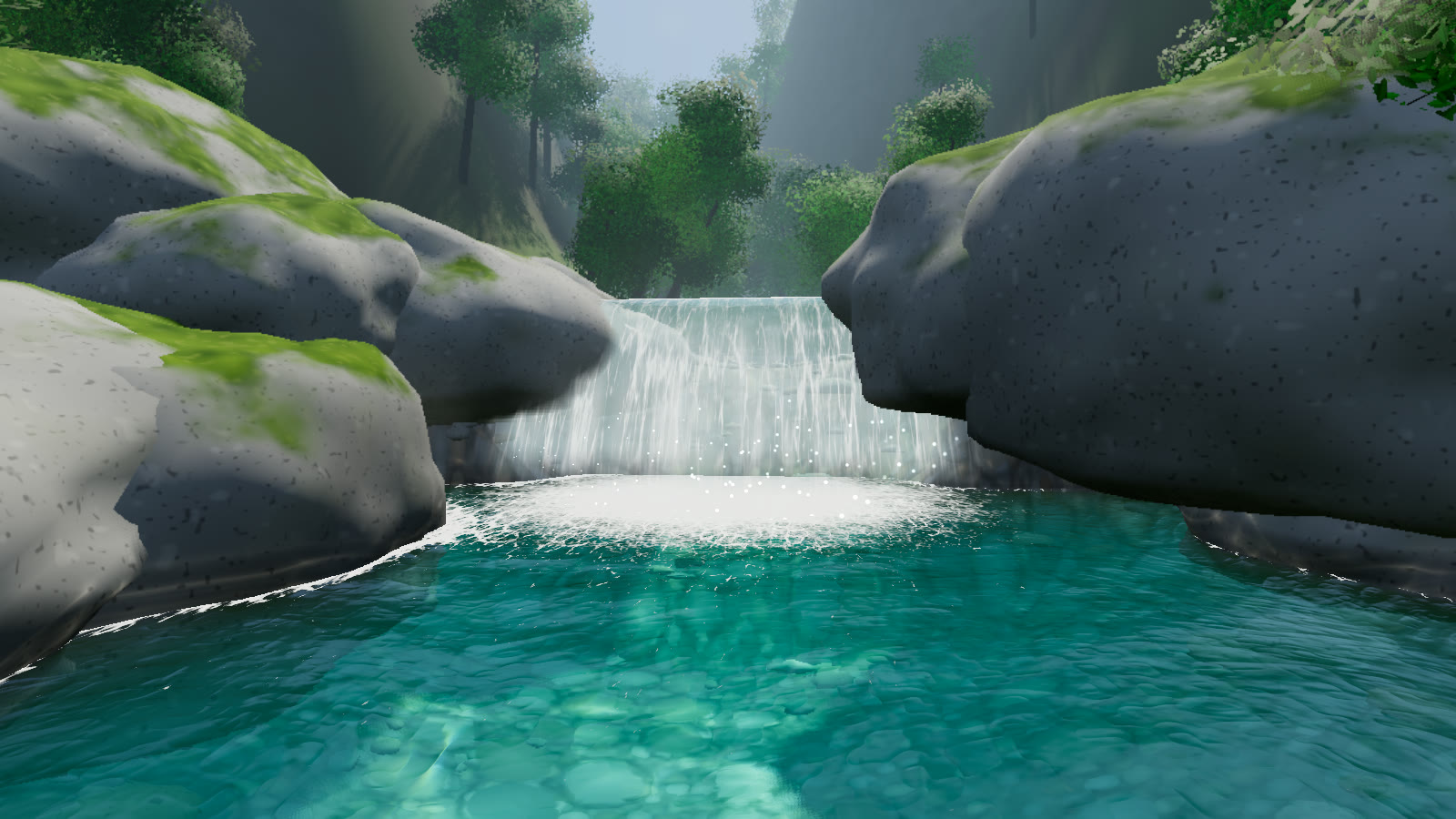

The plunge pool at eye height on `low` and `ultra`. `ultra` renders the world at full resolution with 4× MSAA, marches 36 SSR steps and throws 1100 spray droplets instead of 180.

The plunge pool at eye height on `low` and `ultra`. `ultra` renders the world at full resolution with 4× MSAA, marches 36 SSR steps and throws 1100 spray droplets instead of 180.

#Tuning a tier

QUALITY_LEVELS is a plain exported object, and both create() and setQualityLevel() copy their tier from it. To customise a tier, edit the table before you create the system or switch to that tier:

import { QUALITY_LEVELS } from 'naturegl-river';

QUALITY_LEVELS.high.rtScale = 0.9;
QUALITY_LEVELS.high.ssrSteps = 12;
const water = await RiverSystem.create({ renderer, scene, camera, quality: 'high' });

water.quality holds the copy in use. Changing it afterwards has no reliable effect, because it's read only when shaders compile and meshes are built.
